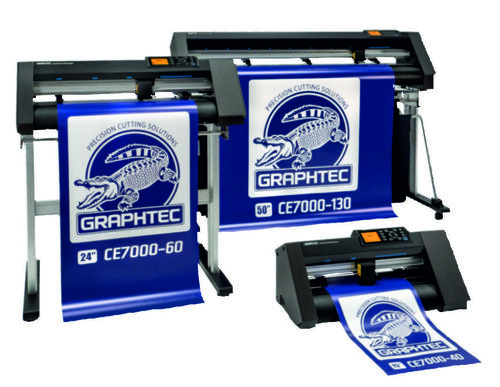

Graphtec Cutting Plotter
Graphtec Cutting Plotter
images Send Inquiry
Request To Call Back

Graphtec Cutting Plotter

Price 110000 INR/ Box

Get a Price/Quote
MOQ : 1 Piece

Graphtec Cutting Plotter Specification

  • Drive Motor
  • Digital servo
  • Product Type
  • Cutting Plotter
  • General Use
  • Sign making, labeling, apparel decorating, stencils
  • Material
  • Vinyl, film, cardstock, sandblast resist, reflective film, heat transfer material
  • Type
  • Automatic Cutting Plotter
  • Capacity
  • Heavy-duty; continuous operation
  • Weight (kg)
  • Approx. 21 kg
  • Computerized
  • Yes
  • Automatic
  • Yes
  • Cutting Speed
  • Up to 900 mm/sec
  • Cutting Thickness
  • 0.25 mm (varies per material)
  • Cutting Function
  • High-precision contour and die cutting
  • Cooling System
  • Natural air cooling
  • Drive Type
  • Digital servo motor
  • Voltage
  • AC 100~240V, 50/60Hz
  • Dimension (L*W*H)
  • Approx. 950 mm x 345 mm x 285 mm
  • Feature
  • Automatic registration mark detection, high-speed cutting, adjustable pinch roller
  • Color
  • White & blue
  • Motor
  • DC servo motor
  • Mechanical Precision
  • 0.005 mm
  • Software Detail
  • Graphtec Studio, Cutting Master, Windows/Mac compatible
  • Cutting Method
  • Drag knife
  • Control System
  • Microcomputer control with LCD display
  • Cutting Area
  • 610 mm x 50 meters (24 inches x 164 feet)
  • Cutting Material
  • Vinyl, paper, film, heat transfer, reflective, and more
  • Supported File Formats
  • PLT, DXF, EPS, CMX, SVG, PDF
  • Interface
  • USB 2.0, Ethernet, RS-232C
  • Repeatability
  • 0.1 mm
  • Environment
  • Operating temperature 10 - 35°C, humidity 35 - 75% RH
  • Display
  • Full dot LCD display with backlight
  • Stand Included
  • Yes, with media roll holder
  • Noise Level
  • Less than 70 dB
  • Max Pressure
  • 450 gf (gram-force)


Graphtec Cutting Plotter Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • Mumbai
  • Delivery Time
  • 2 Days
  • Packaging Details
  • Wooden Boxes
  • Main Domestic Market
  • All India


About Graphtec Cutting Plotter

Develop and expand your business with our Graphtec Cutting Plotter. It is outfitted with high level features such as registration mark sensing and perforation cutting. Our product improves efficiency of work and increase productivity. The major applications of our product are bill boards, high functional films, stickers and labels, packaging, traffic signs etc. We, being a trustworthy supplier, render quality Graphtec Cutting Plotter with improved ARMS5.0 for high precision cutting including auto mark detection, auto sensitivity adjustment, etc.




Precision and Performance

Graphtec Cutting Plotter achieves mechanical precision of 0.005 mm, ideal for intricate designs. Its drag knife cutting method allows for contour and die cutting with automatic registration mark detection, ensuring superior quality and reduced errors even during high-speed operation.


Versatile Applications

Whether youre involved in sign making, apparel decoration, or crafting stencils, this plotter supports a wide range of materials like vinyl, film, reflective films, and sandblast resist. With a cutting area of 610 mm x 50 meters, its suited for both large-scale and custom projects.


User-Friendly Operation

Equipped with a full dot LCD display and Graphtec Studio, Cutting Master software, operation is intuitive and streamlined. Adjustable pinch rollers and stand with media roll holder simplify media handling, while the natural air cooling system ensures reliable performance during long sessions.

FAQs of Graphtec Cutting Plotter:


Q: How does the Graphtec Cutting Plotter ensure high precision in cutting operations?

A: The Graphtec Cutting Plotter uses a digital servo motor and microcomputer control to achieve mechanical precision of 0.005 mm and repeatability of 0.1 mm. Its drag knife method and automatic registration mark detection further enhance cutting accuracy for detailed designs.

Q: What types of materials can be processed with this cutting plotter?

A: This plotter is capable of cutting vinyl, film, cardstock, sandblast resist, reflective film, paper, and heat transfer material, making it suitable for diverse applications including signage, apparel, and stenciling.

Q: When is the ideal time to use the plotter for large or continuous jobs?

A: Thanks to its heavy-duty capacity and natural air cooling system, the Graphtec Cutting Plotter is designed for continuous operation, making it reliable for large production runs or extended periods without compromising performance.

Q: Where can the Graphtec Cutting Plotter be effectively utilized?

A: It is suitable for use in sign making shops, apparel decoration businesses, label production facilities, craft studios, and educational institutions due to its wide range of supported materials and advanced features.

Q: What is the process for loading media and starting a cutting session?

A: The plotter comes with a stand and media roll holder. Media is loaded using adjustable pinch rollers, settings are configured via the LCD display, and files can be transferred using USB, Ethernet, or RS-232C interfaces. The included software guides users through operation from setup to cutting.

Q: How does the plotter benefit users in terms of productivity and cost-effectiveness?

A: Its high-speed cutting capability (up to 900 mm/sec), compatibility with multiple file formats, and automated features such as registration mark detection minimize manual errors and reduce processing time, improving overall productivity and cost-efficiency for professionals.
